Logging in to Studio Server using single sign-on (SSO) via Okta is one of the ways of logging in to Studio Server using SSO.

This article describes how to implement Okta in Studio Server to act as the identity provider.

Before you start

Before you start, make sure that:

You have access to Okta and you have sufficient access rights to configure Okta.

Okta is set up to your needs, for example by setting up additional security rules.

The Studio Server environment in which Okta is implemented has a fully working Studio Server and fully working client applications.

Notes about setting up users and user groups in Studio Server:

Apart from an admin user, users do not have to be set up in Studio Server; when a user logs in, these will be automatically created.
User groups in Studio Server should have the same name as the user groups in Okta.

Implementation

The implementation consists of the following steps:

Setting up Okta
Configuring Studio Server
Setting up client applications
Testing the implementation

Info: Use the filter to only show information for one step.

1. Setting up Okta

Note: The images and steps in this article are those from the Classic UI. When logged in to Okta with a developer account, the Admin UI is shown which differs in places from the Classic UI. It is advised to switch to the Classic UI to correctly follow the steps.

In Okta, Studio Server needs to be set up as an application and linked to users or user groups.

Step 1. In Okta, navigate to Applications and click Add Application.

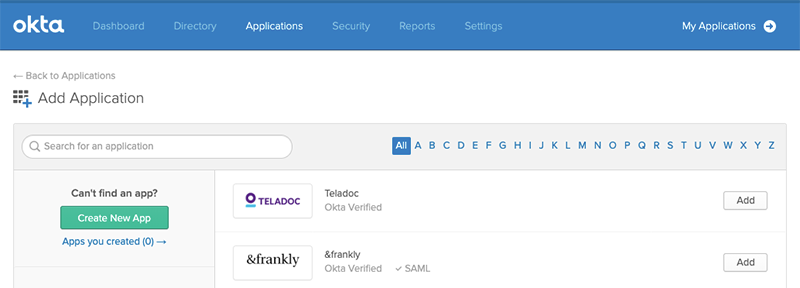

The Okta Add Application page

Step 2. Click Create New App and set the following options:

Platform: Native app
Sign on method: OpenID Connect

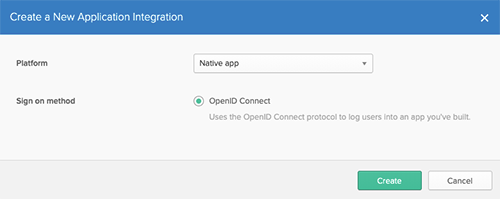

Setting the platform and sign on method

Step 3. Click Create.

The Create OpenID Connect Integration screen appears.

Step 4. Set the following options:

Application name. A descriptive name for the app.

Login redirect URIs. Enter the <base URL> + /idpcallback.php:

Note: The base URL is the exact URL for Studio Server as shown in the Web browser.

Example: https://my-studio-server.com/Studio Server/idpcallback.php

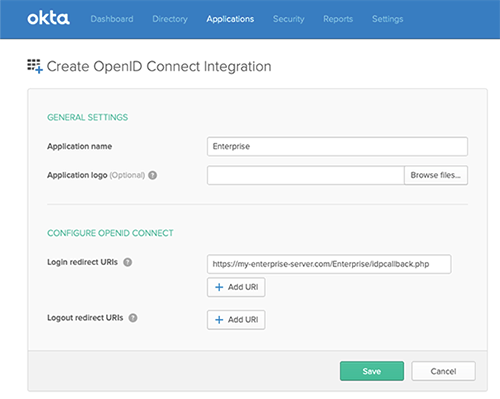

Setting the application name and login redirect URI

Step 5. Click Save.

You are returned to the previous screen.

Step 6. In the Client Credentials section, click Edit and do the following:

Copy the Client ID and client secret to a text file. They are needed later when configuring Studio Server.

Set the following option:
Client authentication: 'Use Client Authentication'

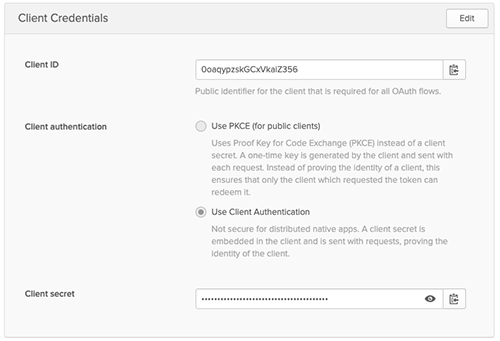

The Okta client credentials

Step 7. Click Save.

Step 8. Scroll to the top of the page and click the Sign On tab.

Step 9. In the OpenID Connect ID section, click Edit and do the following:

Copy the URL from the Issuer field to a text file. It is needed later when configuring Studio Server.

Set the following option:
Groups claim filter: Configure the filter to your needs.

Notes:

The groups that are filtered are returned to Studio Server by Okta.
Memberships are automatically applied by Studio Server once the user logs in.
Matching is done by name; make sure therefore that the names of the groups in Okta match with the names of the groups in Studio Server.
To return all groups, use Matches regex and .*

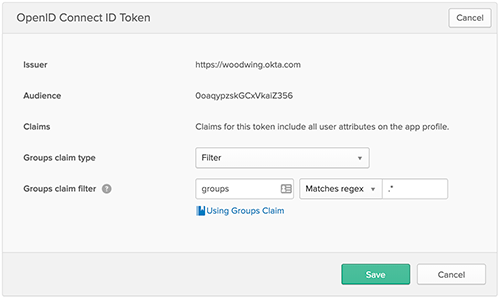

Setting the groups claim filter

Step 10. Click Save.

Step 11. Scroll to the top of the page and click the Assignments tab.

Here, the applications need to be tied to users or user groups.

Step 12. Search for users or groups and assign them to the application.

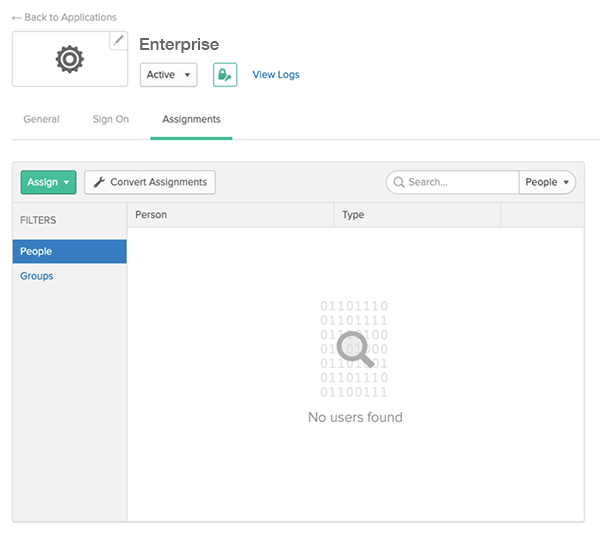

Assigning users and groups

2. Configuring Studio Server

In Studio Server, a connection to the application in Okta needs to be configured.

Add and configure the following settings in the config_overrule.php file:

define( 'OPENID_ISSUER_URL', '' );
define( 'OPENID_CLIENT_ID', '' );
define( 'OPENID_CLIENT_SECRET', '' );

OPENID_ISSUER_URL. The main URL of your Okta account. Use the value that was copied in step 9 of setting up Okta.

Example: https://woodwing.okta.com

OPENID_CLIENT_ID. The client ID as copied in step 6 of setting up Okta.

OPENID_CLIENT_SECRET. The client secret as copied in step 6 of setting up Okta.

3. Setting up client applications

Set up the client applications as follows:

Studio
License configuration. Studio is available in two types, each with their own license: Studio Print and Studio Multichannel. When logging in using SSO, Studio uses the first license type that is configured in the config.js file. When only one license type is used, make sure that it is listed at the top or listed as the only license. When both license types are used, set up 2 separate instances of Studio, each with their own config.js configuration.

Studio for InDesign and InCopy
No additional setup is required.

4. Testing the implementation

Test the implementation by logging in to Studio Server using the various applications:

The Studio Server Maintenance pages
Studio
Studio for InDesign and InCopy

Test the scenario where the user is not yet logged in to Okta and where the user is already logged in to Okta. Follow the steps on screen.

Mapping SSO users with Studio Server user accounts

Mapping an Okta user with the properties for a user in Studio Server is done through the 'OPENID_FIELD_MAPPING' setting in the config_overrule.php file.

The following Studio Server properties can be mapped:

Name
FullName
EmailAddress
Language
TrackChangesColor
Organization
Location
